Product Description

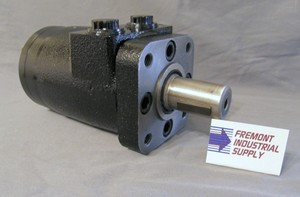

Functional interchange for MAC24001 Ross low speed, high torque hydraulic motor. 19.0 cu. in. / rev displacement. Maximum pressure 1625 PSI continuous, maximum pressure 2060 PSI intermittent. Torque 3575 in-lb. continuous, torque 4470 in-lb. intermittent. Maximum speed 190 RPM continuous. Flow rate 15.8 GPM. 1" diameter shaft with woodruff key. 1/2" NPT ports. 4 Bolt SAE mounting flange. 1 year warranty.
**Note: Our shaft length is 1.58" from face of mounting flange versus 1.94" on the Ross.
