Char-Lynn Hydraulic Motor Interchange

109-1275-006 CharLynn Interchange Hydraulic Motor

Drop in equivalent to CharLynn 109-1275-006 hydraulic motor. 9.8 cubic inch displacement. SAE B 4 bolt  flange. 17 tooth spline shaft. Clockwise rotation. 1-1/16-12 SAE ports. 614 RPM continuous. 4166 in lbs continuous torque. 2900 maximum...

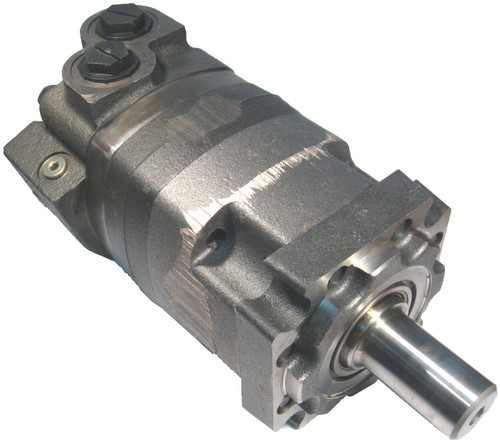

109-1370-006 CharLynn Interchange Hydraulic Motor

Drop in equivalent to CharLynn 109-1370-006 hydraulic motor. 9.8 cubic inch displacement. SAE C 4 bolt  flange. 1.25" keyed shaft. Clockwise rotation. 3/4" split flange ports. 614 RPM continuous. 4166 in lbs continuous torque. 2900 maximum...

109-1287-006 CharLynn Interchange Hydraulic Motor

Drop in equivalent to CharLynn 109-1287-006 hydraulic motor. 9.8 cubic inch displacement. SAE C 4 bolt  flange. 1.25" keyed shaft. Clockwise rotation. 1-1/16-12 SAE ports. 614 RPM continuous. 4166 in lbs continuous torque. 2900 maximum differential...

109-1116-006 CharLynn Interchange Hydraulic Motor

Drop in equivalent to CharLynn 109-1116-006 hydraulic motor. 9.8 cubic inch displacement. SAE B 4 bolt  flange. 14 tooth spline shaft. Clockwise rotation. 1-1/16-12 SAE ports. 614 RPM continuous. 4166 in lbs continuous torque. 2900 maximum...

109-1007-006 CharLynn Interchange Hydraulic Motor

Drop in equivalent to CharLynn 109-1007-006 hydraulic motor. 9.8 cubic inch displacement. SAE B 4 bolt  flange. 1-5/8" tapered shaft. Clockwise rotation. 3/4" split flange ports. 614 RPM continuous. 4166 in lbs continuous torque. 2900 maximum...

109-1109-006 CharLynn Interchange Hydraulic Motor

Drop in equivalent to CharLynn 109-1109-006 hydraulic motor. 9.8 cubic inch displacement. SAE B 4 bolt  flange. 1-5/8" tapered shaft. Clockwise rotation. 1-1/16"-12 SAE oring ports. 614 RPM continuous. 4166 in lbs continuous torque. 2900 maximum...

109-1102-006 CharLynn Interchange Hydraulic Motor

Drop in equivalent to CharLynn 109-1102-006 hydraulic motor. 9.8 cubic inch displacement. SAE B 4 bolt  flange. 1.25" keyed shaft. Clockwise rotation. 1-1/16-12 SAE ports. 614 RPM continuous. 4166 in lbs continuous torque. 2900 maximum differential...

130-1206-003 CharLynn Interchange Hydraulic Motor

Drop in equivalent to CharLynn 130-1206-003 hydraulic motor LSHT. 3.15 cubic inch displacement per revolution. 880 maximum RPM. 717 inch lbs. of torque. 11.85 maximum GPM flow rate. 2400 PSI maximum operating pressure. 1" diameter straight keyed shaft...

104-1901-006 CharLynn Interchange Hydraulic Motor

Drop in equivalent to CharLynn 104-1901-006 low speed, high torque hydraulic motor. 29 cu. in. / rev displacement. Maximum pressure 2030 PSI continuous. Torque 8053 in-lb. continuous. Maximum speed 155 RPM continuous. Flow rate 19.81 GPM...

104-1769-006 CharLynn Interchange Hydraulic Motor

Drop in equivalent to CharLynn 104-1769-006 low speed, high torque hydraulic motor. 24.04 cu. in. / rev displacement. Maximum pressure 2320 PSI differential continuous. Torque 7786 in-lb. continuous. Maximum speed 185 RPM continuous. Flow...

104-1406-006 CharLynn Interchange Hydraulic Motor

Drop in equivalent to CharLynn 104-1406-006 low speed, high torque hydraulic motor. 19.20 cu. in. / rev displacement. Maximum pressure 1766 PSI continuous. Torque 4956 in-lb. continuous. Maximum speed 240 RPM continuous...

104-1491-006 CharLynn Interchange Hydraulic Motor

Drop in equivalent to CharLynn 104-1491-006 low speed, high torque hydraulic motor. 15.40 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous. Torque 3983 in-lb. continuous. Maximum speed 300 RPM continuous...
